stationary Scissor Lift platform

Tiny sub heading that focuses on the topic mentioned above

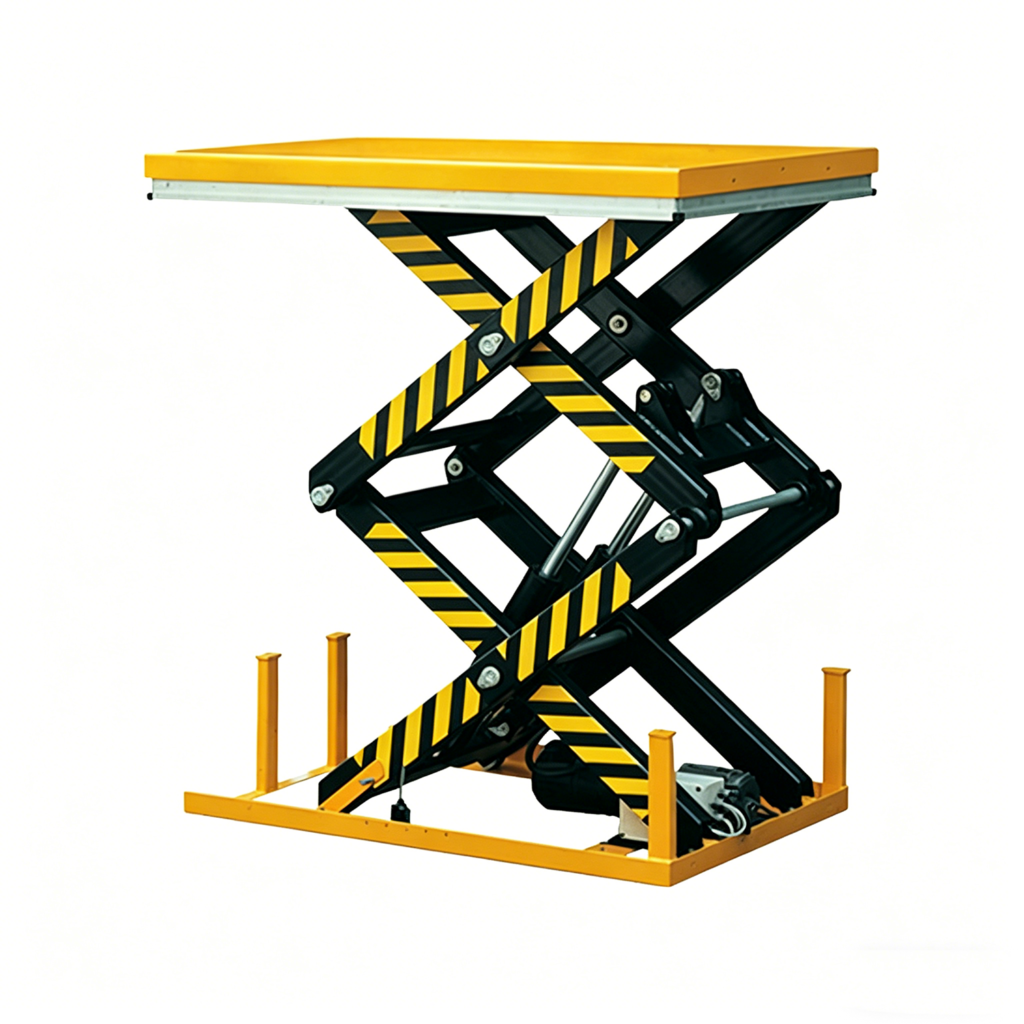

stationary Scissor Lift platform

Our fixed scissor lift tables adopt reinforced structure and premium quality components, ensuring outstanding load capacity and superior lifting height.

All key parameters including platform size, lifting height and bearing capacity can be fully customized to match your actual site demands.

Featuring stable performance, flexible application and effortless operation, our fixed scissor lifts are the ideal reliable solution for your industrial warehouse and workplace.

Fully proportional control, strong operational comfort
High performance lead-acid batteries
Maintenance free design, low maintenance cost
Multiple security protections
Strong human-computer interaction
Tell us about your application, operators, and work demands. Our team will help you design the ideal solution to keep your cost running at peak performance.

WE WILL QUOTE YOU WITHIN ONE HOUR

    Specifications

    ModelCapacity（kg）Self Height (mm)Max. Platform Height(mm)Platform Size(mm)Base Frame Size(mm)Lift Time(second)Net Weight(kg)
    HW100110002059901300 x 8201266 x 68020-25160
    HW10022059901600 x 10001266 x 68020-25186
    HW100324013001700 x 8501600 x 68030-35200
    HW100424013001700 x 10001600 x 68030-35210
    HW100524013002000 x 8501600 x 68030-35212
    HW100624013002000 x 10001600 x 68030-35223
    HW100724013001700 x 15001600 x 136230-40365
    HW100824013002000 x 17001600 x 136230-40430
    HW2001200023010001300 x 8501220 x 78520-25235
    HW200223010001600 x 10001220 x 78520-25268
    HW200325013001700 x 8501600 x 78525-35289
    HW200425013001700 x 10001600 x 78525-35300
    HW200525013002000 x 8501600 x 78525-35300
    HW200625013002000 x 10001600 x 78525-35315
    HW200725014001700 x 15001630 x 143525-35415
    HW200825014002000 x 18001630 x 143525-35500
    HW4001400024010501700 x 12001600 x 90030-40375
    HW400224010502000 x 12001600 x 90030-40405
    HW400330014002000 x 10002000 x 90045-50470
    HW400430014002000 x 12002000 x 90045-50490
    HW400530014002200 x 10002000 x 90045-50480
    HW400630014002200 x 12002000 x 90045-50505
    HW400735013001700 x 15001600 x 120035-45570
    HW400835013002200 x 18002000 x 150035-45655
