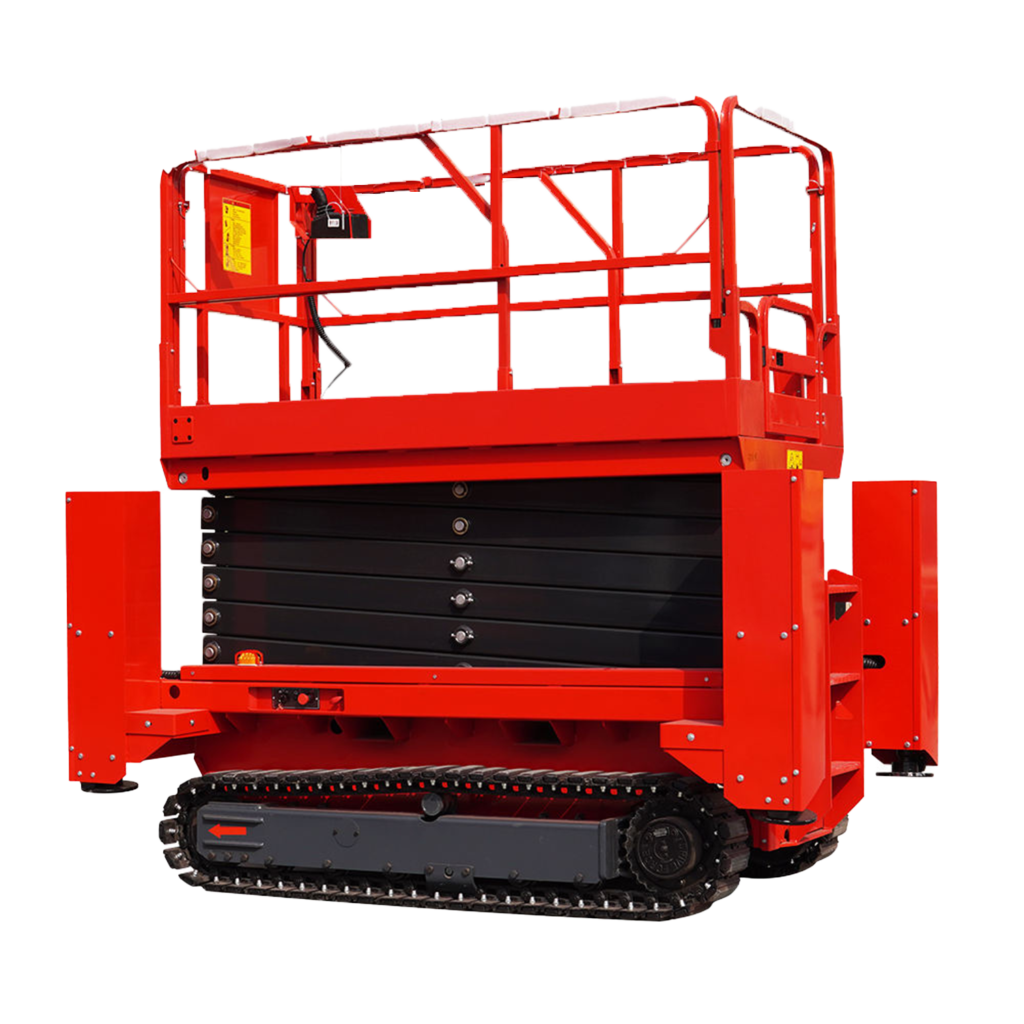

Self-Propelled Track Scissor Lift

Tiny sub heading that focuses on the topic mentioned above

Self-Propelled Track Scissor Lift

This product is powered by batteries and is environmentally friendly. It has the advantages of high stability, flexible operation, and safety and reliability. It is widely used in urban complexes, small electronic factories, tunnels, exhibition halls, and other construction, maintenance, and building property management environments.

Compact structure and large grounding area ensure low shaking and high safety during lifting and traveling.
Professional off-road control system and proportional lifting design deliver safer logic and smoother operation.
Maintenance free design, loSupports 360° stationary rotation and one-sided steering for superior agility.w maintenance cost
Great traction and obstacle-crossing performance, with wear-resistant parts for easy maintenance.
One-click leveling outriggers plus flexible steering easily adapt to complex and rough terrains.
Tell us about your application, operators, and work demands. Our team will help you design the ideal solution to keep your cost running at peak performance.

WE WILL QUOTE YOU WITHIN ONE HOUR

    Specifications

    ModelGTJZ0608GTJZ0810GTJZ1012GTJZ1214GTJZ1416
    Specifications
    Max. Working height8.0m10.0m12.0m14.0m15.8m
    Max. Platform height6.0m8.0m10.0m12.0m13.8m
    Overall length2.78m2.78m2.78m2.78m3.18m
    Overall width1.57m1.57m1.57m1.57m1.60m
    Overal height (unfolded fence)2.35m2.47m2.64m2.74m2.74m
    Overall height (folded fence)1.8m1.9m2.1m2.2m2.2m
    Work plaform dimensions
    (length x width)    		2.27*1.13m2.27*1.13m2.27*1.13m2.27*1.13m2.63*1.13m
    Platform extension size0.9m0.9m0.9m0.90.9m
    Wheelbase/////
    Ground clearance/////
    Performance
    RATED LOAD450kg450kg320kg320kg227kg
    Extended platform rated load113kg113kg113kg113kg110kg
    Machine travel speed
    (retracted state)    		1.8km/h1.8km/h1.8km/h1.8km/h1.8km/h
    Machine travel speed
    (lifting state)    		0.0km/h0.0km/h0.0km/h0.0km/h0.0km/h
    Rise/tall time3-5m/min3-5m/min3-5m/min3-5m/min3-5m/min
    Gradeability25%25%25%25%25%
    Maximum allowable angle
    for work (front and back)    		3°3°3°3°3°
    Maximum alowable angle
    for work lateral    		1.5°1.5°1.5°1.5°1.5°
    DriveElectric driveElectric driveElectric driveElectric driveElectric drive
    TireSteel trackSteel trackSteel trackSteel trackSteel track
    Power
    Power source8*6V/220AH8*6V/220AH8*6V/220AH8*6V/220AH8*6V/240AH
    Lifting motor48V/4.5KW48V/4.5KW48V/4.5KW48V/4.5KW48V/4.5KW
    Walking motor48V/4KW48V/4KW48V/4KW48V/4KW48V/4KW
    Charger48V/30A48V/30A48V/30A48V/30A48V/30A
    Weight
    Whole machine weight2770kg2970kg3270kg3680kg3990kg
