Self-Propelled Telescopic boom Lift

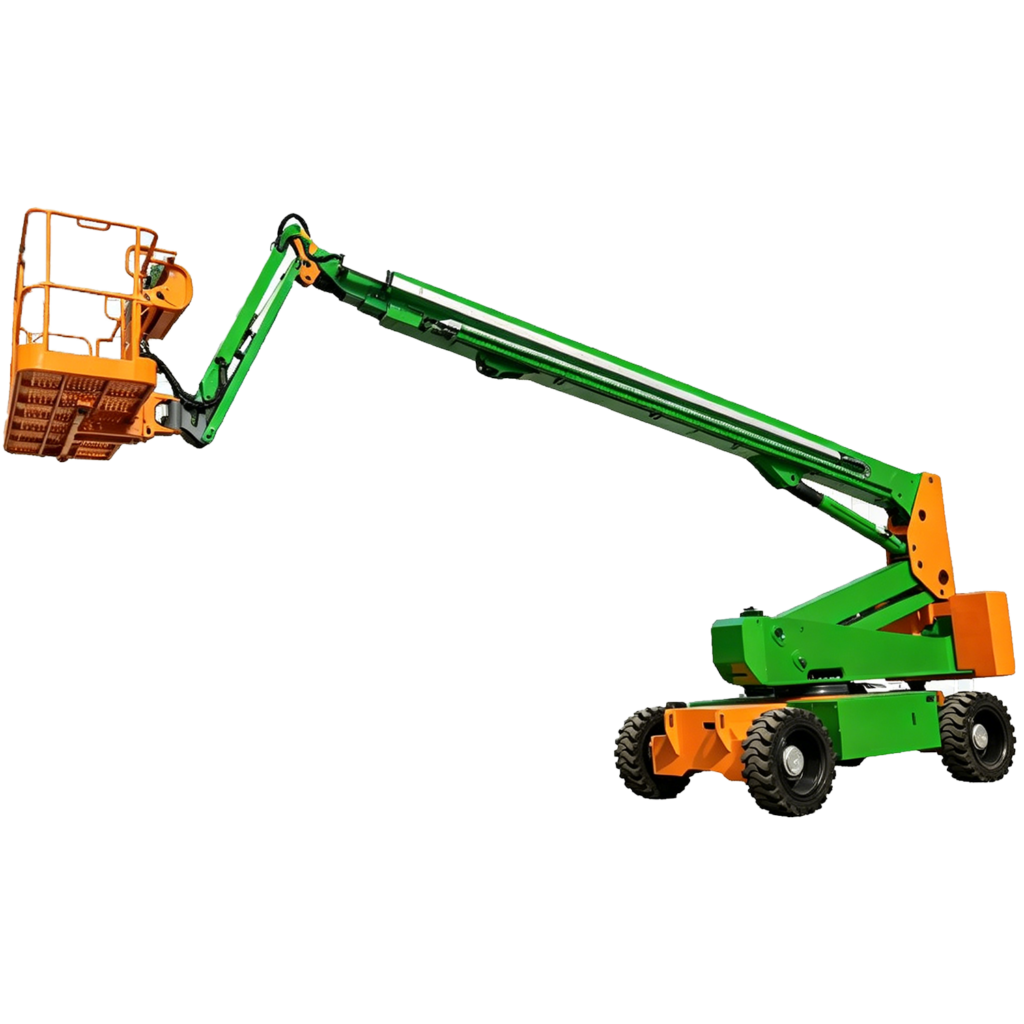

Self-Propelled Telescopic Boom Lift

HuaShi self‑propelled telescopic boom lift comes in battery‑powered and diesel‑powered types, featuring 21.8‑32.4m working height and 450kg load capacity.

With 4‑wheel‑drive off‑road system and long‑lasting lithium battery, it perfectly meets heavy‑duty aerial work demands.

Full tilt angle and spacious platform for bulk material & tool loading.
Full‑time floating design, one‑key differential lock & 4‑wheel auto‑centering for strong climbing and obstacle‑crossing ability.
Large‑capacity maintenance‑free lithium battery, long endurance and low‑noise urban‑indoor operation available.
3‑way fully proportional joysticks enable accurate positioning for aerial tasks.
High‑universality of core & structural parts, lower spare‑part cost and easier upkeep.
Tell us about your application, operators, and work demands. Our team will help you design the ideal solution to keep your cost running at peak performance.

WE WILL QUOTE YOU WITHIN ONE HOUR

    Specifications

    ModelMPT22EMPT24EMPT28E
    Specifications
    Max.Working height22.9m24.428.8m
    Max.Platform height20.9m22.426.8m
    Max.Working range16.9m18.621.7m
    Max.Up and over clearance16.3m1821.1m
    Overall length9.82m10.511.75m
    Overall width2.49m2.492.49m
    Overall height2.73m2.733.03m
    Wheelbase2.5m2.5m3.2m
    Ground clearance - center0.28m0.28m0.33m
    Work platform dimensions (length x width)2.44m×0.91m2.44m×0.91m2.44m×0.91m
    Productivity
    Rated load (unrestricted/restricted)300Kg/460kg300Kg/460kg300kg/460kg
    Rotation angle of turntable360° continuous360° continuous360° continuous
    Platform swing amplitude160°160°160°
    Max.Driving speed - in retracted/stowed position0-5.5Km/h0-5.5Km/h0-6Km/h
    Max.Driving speed
    - operating state    		0-1.1Km/h0-1.1Km/h0-0.8Km/h
    Climbing ability40%40%45%
    Inner turning radius3.5m3.5m3.5m
    Outer turning radius5.5m5.5m6.9m
    Turntable tail sweep1.6m1.6m1.93
    Tilting is permitted during operation.5°5°3°
    Driving × Steering4×24×24×2
    Tire315/55D20315/55D20385-45/28
    Power(Diesel engine selection )
    Power source80V 412Ah80V 412Ah80V 560Ah
    Control voltage12V DC12V DC12V DC
    Hydraulic system capacity160L160L160L
    Weight
    Total weight of the machine11960Kg13000Kg16600Kg
